Product Description:

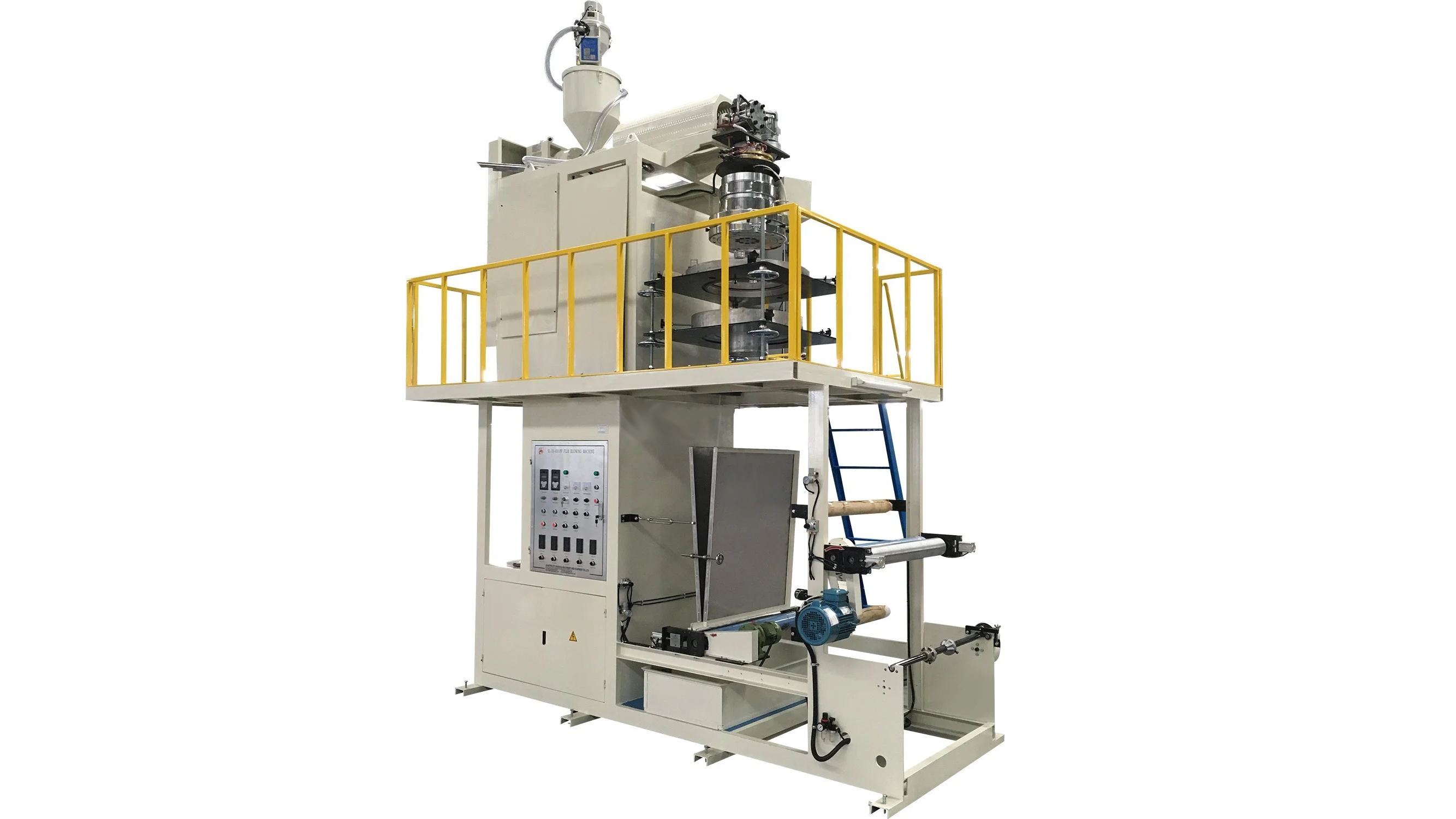

The PP film blowing machine is designed with a configuration that includes down-blowing, air cooling, water cooling, and hot air drying systems, ensuring the production of top-tier polypropylene films. The main motor and winding motor are equipped with variable frequency drives for efficient speed control. Furthermore, customers can customize their setup with a Corona Treater, two extra winders, a Filler magnet, and an auto-loader to suit their specific requirements.
Technical Parameters:
| Model | SL-45-600 | SL-55-800 | SL-65-1000 |
| Screw diameter | 45mm | 55mm | 65mm |
| Screw length proportion | 30:1 |
| Screw Material | 38 CrMoal
38 CrMoal surface with nitride, with special mixed segment |
| Blowing material | PP |
| Temperature controller | 4Zone | 4Zone | 6Zone |
| Main drive motor power(kw/level) | 11kw/4 | 18.5kw/4 | 30kw/4 |
| Film blowing thickness | 0.02mm-0.10mm | | |
| Printing speed | 0-60m/min |
| Output | 10-35KG/H | 15-40KG/H | 20-55KG/H |
| Traction roller length | 600mm | 800mm | 1000mm |
| Max.winding diameter | 550mm | 550mm | 600mm |
| Total weight | 2000KGS | 2500KGS | 3000KGS |
| Overall size(L*W*H) | 5000*1500*3200mm | 5000*1700*3200mm | 5000*2000*3200mm |
Applications:
In addition to its fundamental role in plastic film manufacturing, polypropylene (PP) film has diversified its usage, establishing its importance across multiple industries. It plays a critical role in food and industrial packaging, proves advantageous in agricultural coverings for crop preservation, and is essential in pharmaceutical packaging for ensuring the safety of medicinal products.
Support and Services:
PP Film Blowing Machine Technical Support and Service
Our technical support and service for PP Film Blowing Machine is available.
Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.
We also offer a range of on-site services such as installation, maintenance, and repair of the machine.
We are committed to providing you with the highest level of customer service and satisfaction.
Packing and Shipping:
Packaging and Shipping for PP Film Blowing Machine
The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.
FAQ:
- Q: What is the Brand Name of this PP Film Blowing Machine?
- A: The Brand Name is Honghua.
- Q: What is the Model Number of this PP Film Blowing Machine?
- A: The Model Number is SL-45-600.
- Q: Where is this PP Film Blowing Machine made?
- A: This PP Film Blowing Machine is made in Jiangyin, Jiangsu, China.
- Q: What materials can this PP Film Blowing Machine process?
- A: This PP Film Blowing Machine can process polyethylene (PE) materials.
- Q: What is the output capacity of this PP Film Blowing Machine?
- A: The output capacity of this PP Film Blowing Machine is up to 250 kg/h.
